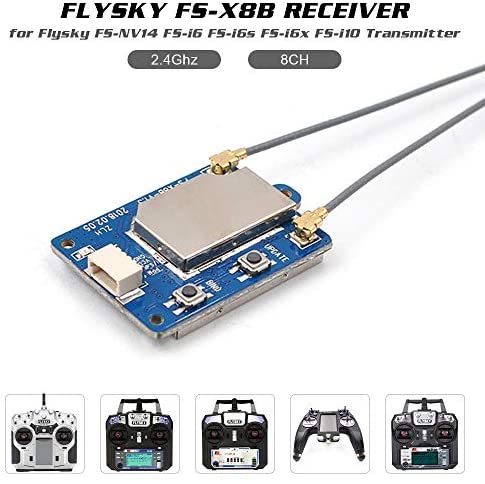

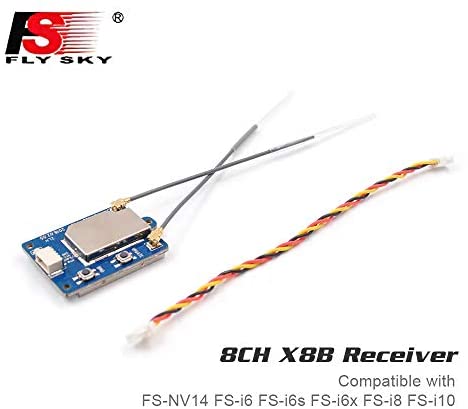

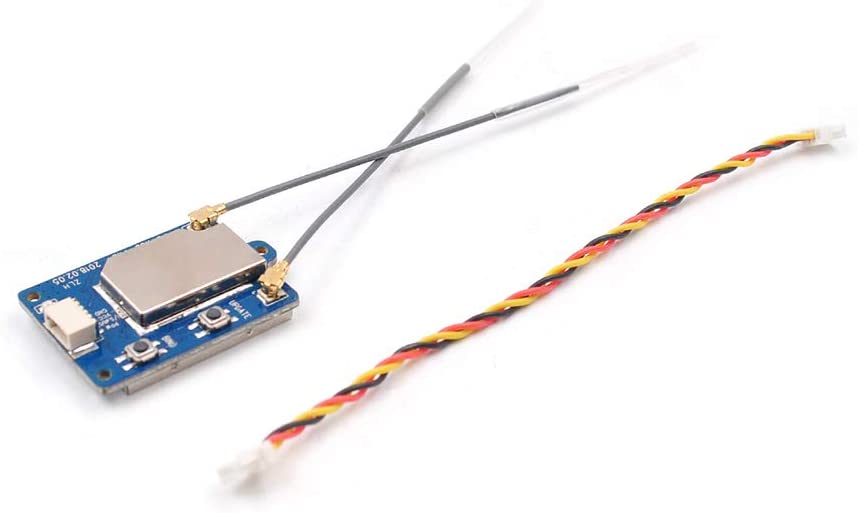

GoolRC Flysky FS-X8B Receiver, 8CH 2.4G i-Bus/PPM Receiver for FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter RC Quadcopter

Flysky FS-X8B Receiver 8CH 2.4G i-Bus/PPM Receiver for FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter RC Quadcopter.Features: The FS-X8B is a single antenna bidirectional receiver using the AFHDS 2A (Second Generation Automatic Frequency Hopping Digital System) protocol. Its compact, easy to install and can output using a standard PPM ori-BUS signal. Compatible transmitter: FS-i6, FS-i6s, FS-i6x, FS-i8, FS-i10 Transmitter. Function: Bi-Directional Transmission Support PPM/i-Bus, the i-Bus signal port, up to 8 channels support. Range without ground interference (Transmitting and receiving 1m from the ground): >300m.Specifications: Product Model: FS-X8B Product Name: Receiver Channels: 8 PPM/i-BUS Frequency Range: 2.408-2.475GHz Bandwidth: 500KHz Number of Bands: 135 Transmission Power: <20dBm(EU) Receiver Sensitivity: – 92dBm 2.4GHz Protocol: AFHDS 2A Modulation: GFSK Transmission Method: FHSS Channel Latency: <15ms Antenna lenghth: 93mm (Double Antenna) Input Power: 4.0-8.4V Display: LED Indicator Online Update: None Range without interference 1m from the ground:more than 300m Channel Data: 1500us Range: 1000 ~ 2000us Size: 32 * 22 * 7mm Weight: 3.7g Certificate: CE, FCCPackage Information: Package size: 3.5 * 2.5 * 1cm / 1.4 * 0.9 * 0.4in Package weight: 5gPackage List: 1 * FS-X8B Receiver
