Car 1:10 Scale F540 4370KV Brushless Motor with 60A ESC and Electric Speed Controller Programming Card Classic Motor ESC Combo Set for 1/10 RC Car Truck

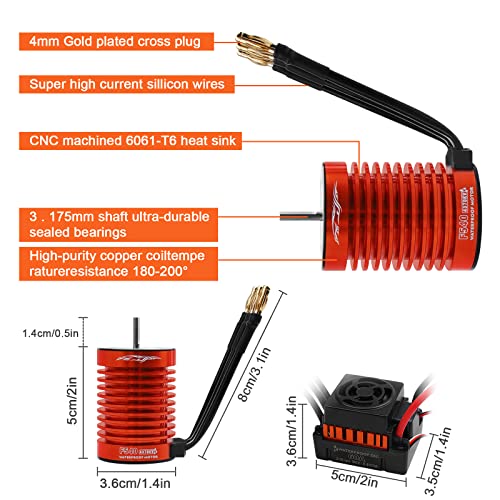

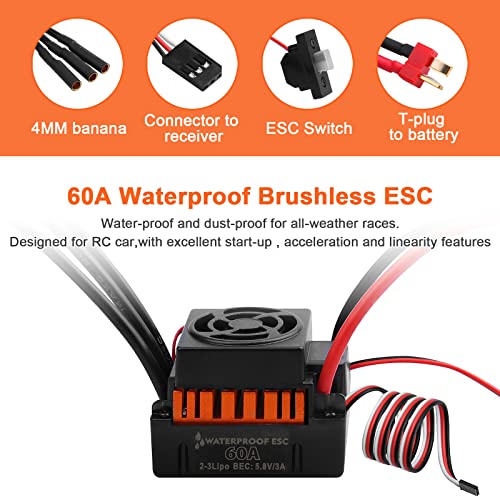

Features: F540 Brushless Motor: CNCMachined 6061T6 Billet Aluminum Heatsink Can High Purity Copper Windings Maximizes Efficiency Precision balanced rotor, smoothness for best reliability and maximum RPM Universal fit, fits most of 1/10 rc cars 60A Waterproof ESC: Specially designed for RC car, water-proof and dust-proof for all-weather races. Excellent start-up, acceleration and linearity features. The strong resistant current capability, excellent heat dissipation. Multiple protection features, widely compatible with for 1/10 RC car Notice This 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S Battery or above 3S battery to avoid short circuit!! Specifications: Motor: Watts: 900W Max voltage: Max Amps: 75A KV(RPM/Volt): 4370KV Max RPM: 50000 Plug type: 4mm golden banana plug Shaft length: 15mm Shaft diameter: 3.175mm Diameter: 36mm Length: 50mm Weight: 180g ESC: Cont/Burst Current: 60A/320A Motor Type: Sensorless brushless motor Suitable brushless motor: =9T Resistance: 0.0007ohm Battery: 2S Lipo/ 4-6cells NiMH BEC Output: 5.8V/3A(switch mode) Diamension:50 X 35 X 36mm (1.97 x 1.38 x 1.38in) Instuctions 1. Connect BEC wires with the receiver 2. Connect motor wires with ESC 3. Turn on the transmitter 4. Connect battery pack with ESC then switch on the ESC. 5. When the connection of motor and battery is finished, the motor emitsBeep-Beeptone. 6. When the throttle stick is in the neutral position, the motor re-emits Beep-Beeptone. 7. The ESC is workable. 8. please read product manual(ESC) Package 1 X F540 4370KV Brushless Motor 1 X 60A ESC 1 X Program card 2 X product manual
