Asixx Brushless Motor, 430W Single Drive ESC Substitute Control Mainboard Electric Longboard Skateboard Control System with Led Indicator and Remote

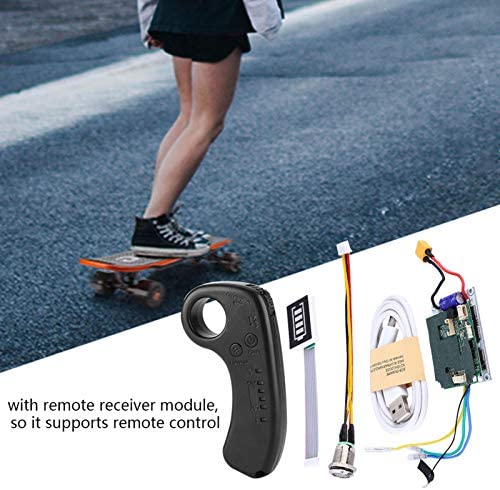

Specifications: Single Motor Drive ESC: Rated Voltage: 36V Current: 12A Power: 430W (36V) Rotate Speed: 3000rpm Max Speed: 35km/h Drive Mode: FOC Sensing Mode: Hall Max Load Bearing: 120kg Protection: Over-voltage, Under-voltage, Overheat, Stall, CW/CCW, Overcurrent, Speed Control   Package List: 1 * Control 1 * Remote Control Transmitter 1 * LED Battery Indicator 1 * Switch 1 * USB cable How to choose the right controller: 1. Confirm how much voltage your battery is 6 string battery is 25.2V 7 string is 29.4V 10 string battery is 36V 2. Confirm the type of motor, external motor chain, belt drive, belt type controller, hub motor, motor integral wheel. Please select the controller of the wheel type. 3. Confirm single drive or four drive. One controller drives a motor to be a single drive. One controller drives two motors to be a double drive. One controller drives four motors to be four-wheel drive.  Note: 1. The driver board is a high-precision circuit board. Do not touch the metal object/liquid to the board before and during use to avoid internal short circuit! 24V ESC must use a voltage above 24V, the maximum voltage can be used is 29.4V (the ESC wont work below 24V). 36V ESC must use a voltage above 36V, the maximum voltage can be used is 48V (the ESC wont work below 36V). 2. Do not connect motor lines in parallel to allow single drive to drag two motors.
