12 LED RC Lighting Kit for Steering/Brake/Smart Simulation Flash RC Lights for 1/10 Scale Models RC Car Yokomo Tamiya HSP HPI AXIAL RC4WD Traxxas

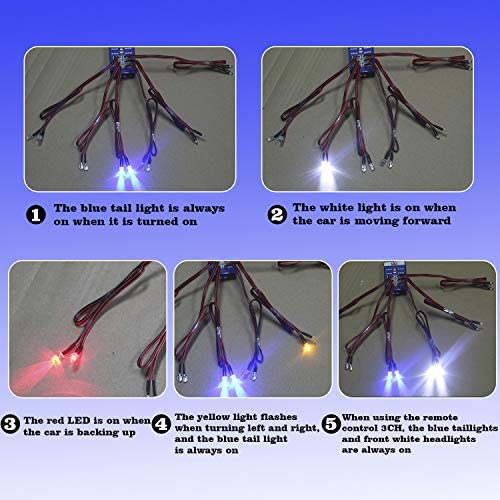

Specifications: Name: 12 LED Lighting System Kit Material: Plastic LED bulb quantity: 12 Working Current: 100mA Input voltage: 4.8V – 6.0V Lights color: White, red, yellow, blue Connection method: CH1 – Servo / CH2 – Speed controller/ CH3 – Receiver Suitable for: 1/10 RC cars LED cable length: about 300mm Circuit board size: 53 * 33 * 15mm Weight: 57.2g Lights Description: Headlights: 4 white LED lights Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up. Turn lights: 4 yellow LED lights With the remote control change the direction, the lights will synchronous flashing. Taillights: 2 blue LED lights, 2 red LED lights The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on. Installation Method: CH2 Transmitter: Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver. CH3 Transmitter: Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver. Package information: Package size: 16 * 7 * 4cm / 6.3 * 2.8 * 1.6in Package weight: 60g / 2.1oz Polybag package Package list: 1 * 12 LED Lighting System Kit
